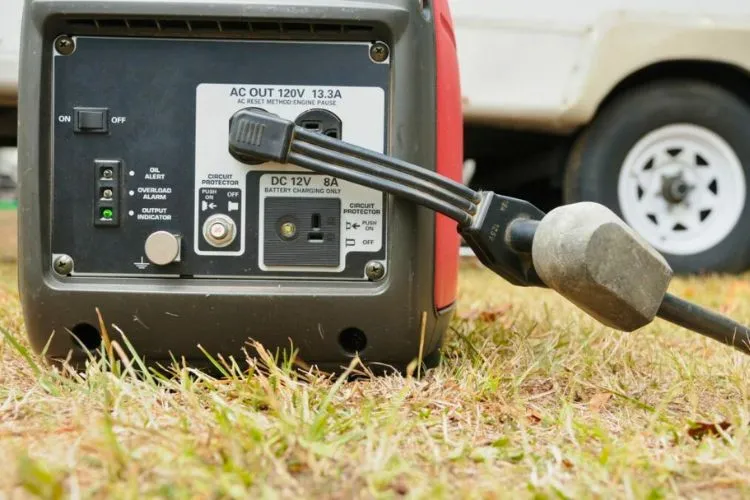

If you are going camping, you might have asked yourself, “Do I need to ground my generator when camping?” Well, Yes! You do need to ground your portable generator while camping.
Grounding your camping generator is vital as you run the risk of overheating or damaging your electrical system if you don’t. Furthermore, sensitive wiring and circuitry might be affected. There is also a risk of electrical shock when you don’t ground your generator.
Grounding a camping or RV generator has become standard practice to help prevent any chance of electrocution or fire. It doesn’t matter if you have a high-quality generator; you should still safely ground it. Your electrical power supply remains efficient, and you reduce the risk of damaging the sensitive circuitry.
This guide will show you all you need to know about grounding your generator when camping.
What Does Grounding a Generator Mean?
Grounding a generator means connecting an electrical circuit to the ground by connecting the metal frame to the ground. Metal conducts electricity, so a common practice is to connect that frame to a rod several feet away from the generator, grounding or earthing it.
It is necessary to ground a generator because the current passes through wires, looking for a way to return to the earth via energy dissipation. If a problem or fault should develop, the current will always flow through the path of least resistance.
Not grounding your portable generator means that the path of least resistance isn’t where it should be. This process could end up causing electrocution or even starting a fire.
You need a copper grounding rod to connect your generator to the earth. The rod enables you to dissipate current safely into the ground. Your copper grounding rod should be at least 4 feet long. However, you can always get a larger rod to ground deeper.
Hammer or mallet
You will require a heavy or blunt object such as a hammer or mallet to drive your grounding rod into the earth. You need to make sure your grounding rod is at least 4 feet in the ground when doing this.
You will need some copper grounding wire. This wire lets you connect the grounding rod to the grounding bolt on your generator. The length of your grounding wire is dependent on how far your grounding rod is from your generator.
However, as stated earlier, the grounding rod should be at least 8 feet away from the generator. This means your grounding wire should be longer than 8 feet.
Wire strippers, pliers, and a wrench
These tools are essential as they help you strip the grounding wire before connecting it to the grounding bolt on one side and the rod on the other.
Steps to Grounding
Bury the grounding rod
Burying the copper grounding rod is the first step to take. You will need to put the rod into the ground using a mallet or a hammer. Your copper grounding rod should be at least 4 feet into the ground.
The deeper in the earth it is, the better grounded your generator will be. You should also ensure that your copper rod isn’t angled more than 45°.
Strip the grounding wire
This step requires you to use a wire stripper to strip the protective case of the grounding wire on both ends. When stripping, ensure you are careful enough not to cut the stripped wire too short. Focus solely on the parts that you need bare. The wire should be more than the minimum distance between the generator and the grounding rod, which is 8 feet.
Wrapping the wire onto the rod
This step requires you to wrap the stripped wire onto the copper rod. You will need a pair of pliers to achieve this. The grounding rod typically has a screw that lets you connect the wire to the rod. Place your wire in the opening and tighten the screw to keep the wire in place.
Attaching the wire to the generator
Now that the copper wire has been connected to the grounding rod, you should take the other end and connect it directly to your generator. Your unit should have a grounding bolt that can be loosened using a wrench.
Place the grounding wire in the opening and then tighten it using the bolt. And that is it; you have successfully grounded your generator.
Reasons Why You Should Ground Your Generator?
If your generator has a grounding rod, grounding your generator can be an easy task. All you have to do is place the rod into the ground. Before doing this, however, you need to ensure the grounding wire wraps around the ground bolt located on your generator’s chassis.
Ensure that the generator links to the grounding system by checking that all wires are connected. Additionally, if the copper wire wraps around the grounding bolt, your generator’s grounding system will not have a decent connection to run the arch flash away.
One thing to note before you place your grounding rod into the ground is that it needs to be at least 4 feet long. Additionally, it should be at least 8 feet away from the generator.
This minimum distance ensures that the electricity will flow away from the unit. Your grounding rod should be pushed several feet into the ground, as the deeper the rod is, the better the grounding will be.
To ground a generator, it might be necessary to hammer the copper ground rod into the earth. You can also use some water to loosen any hard soil, making the generator grounding rod easier to hammer into the earth. When using water, ensure that your rod doesn’t sit in water as this can cause electrical shock.
